AVI321 IP PTZ Camera |
 |
|
Built-in 22x optical zoom lens with auto focus lens |
|
|

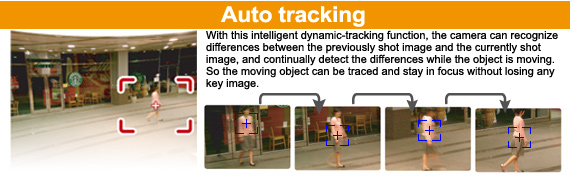

Intelligent auto tracking function to follow intruders |
|
|
Area Zoom functions - Draw a square in the live view with your mouse |
| |
|
and the PTZ network camera will zoom in the assigned area |
|
|
Motion detection and alarm notification functions |
|
|
Real time MPEG-4 network transmission |
|
|
Low-latency video streaming for sharp and clear images |
|
|
Hybrid digital / analog video output |
|
|
Control network camera via Central Management System (CMS) software |
|
|
Excellent precision controllability using joystick or keyboard controller |
|
|
Support external microphone input |
|
|

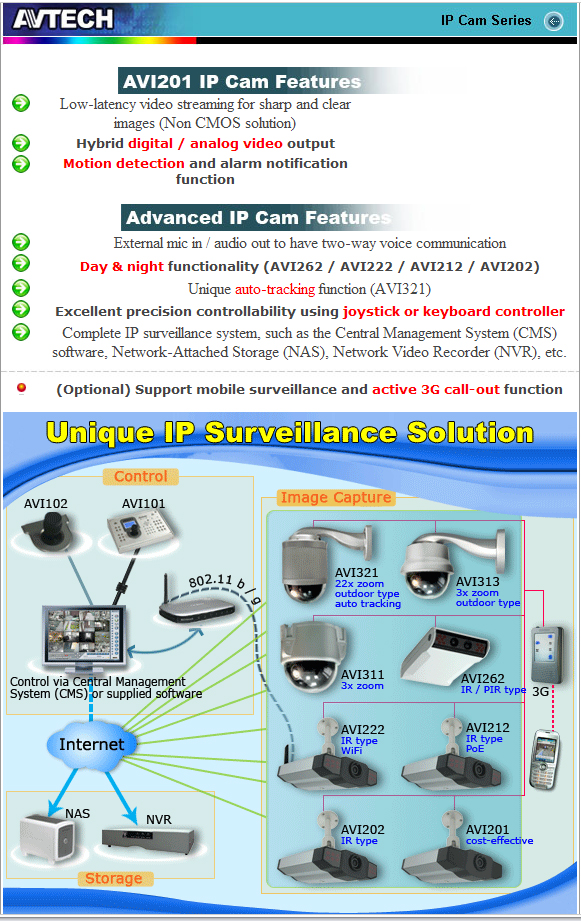

Complete IP surveillance system, such as the Central Management System (CMS) software, |
| |
|
Network-Attached Storage (NAS), Network Video Recorder (NVR), etc. |
| |
|
|
| |
|
CPZ201 Joystick and Keyboard Controller |
|
|
Control all devices through one keyboard controller (Up to 64 devices) |
| |
|
Devices such as PTZ camera, DVR and door access control…etc. |
|
|
User-friendly buttons placement & LCD control panel (128*64 pixels) for easy operation |
|
|
Support two protocols (AVTECH and PELCO-D) |
|
|
Password protection to prevent unauthorized intruder |
|
|
Built-in microphone for broadcast function |
|
|
|
|
|
Outdoor IP PTZ 22X Zoom Speed Dome Camera |
| NETWORK |
LAN Port |
YES |
LAN Speed |
10/100 Based-T Ethernet |
Supported Protocols |
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, CMP, SMTP, FTP, HTTP, RTP, RTSP |
Frame Rate |
NTSC:30, PAL:25 |
Number of Online Users |
10 |
Security |
Multiple user access levels with password |
Web management software |
YES (Control up to 16 network cameras simultaneously) |
| VIDEO / AUDIO |
Video Compression |
MPEG4 / MJPEG |
Video Remote Control |
YES |
Video Adjustment |
Brightness, Contrast, Saturation and Hue |
Audio Compression |
uLaw , 128kbps |
Audio Input |
MExternal Microphone Input |
| CAMERA |
Image Sensor |
1/4" Sony Color Super HAD CCD |
Pixels |
768(H)*494(V)(NTSC) / 752(H)*582(V)(PAL) |
Resolutions |
480TV lines |
Lens |
f3.9 - 85.9mm |
F-number |
F1.6(Wide) - 3.7(Tele) |
Viewing Angle |
4° - 60° |
Tilt Range |
90° |
Zoom |
22X Optical Zoom (f3.9 - 85.9mm) |
Max Speed |
Pan 360°/s - Tilt 90°/s |
Shutter Speed |
1 / 60 (1/50) to 1 / 100,000 sec. |
Min Illumination |
1 Lux / F1.6 |
Video Output |
1.0 Vp-p. 75Ω |
BLC |
On / Off |
White Balance |
Auto / Indoor 1 / Indoor 2 / Sun / Cloudy
Indoor1 = 9000K; Indoor2 = 3000K; Sun = 5500K; Cloudy = 7000K |
Camera ID |
0 - 255 |
| OTHERS |
Remote Control |
YES |
Motion Detection |
YES |
Alarm and event Notification |
Image upload over FTP and email |
General I/O |
Alarm in x1 |
Power |
12VDC, 1.5A |
Operating Temperature |
0 - 40° |
Humidity |
85% |
Minimum Web Browsing Requirements |
Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD, 256 MB RAM, AGP graphics card , Direct Draw, 32MB RAM, Windows XP, Windows 2000 Server, ME, 98, DirectX 9.0 or later, Internet Exploerer 6.x or later |
Dimension (mm)** |
145(D) x 184(H) |
In/Out Door Use |
Outdoor |
|
|
|
|
 | |
