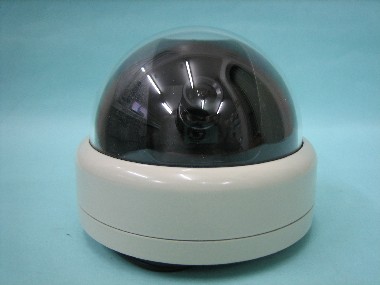

GL-111
@
@ @ @
@
Characteristic

High sensitivity, true colour, standard resolution
Hi-impact reinforced Polycarbonate Armor Dome withstand a blow 10-pound sledgehammer
Reinforced polycarbonate with special coating on surface
Color IR weather-resistant camera 420 TVL 1/3 SONY SUPER HAD CCD
Illumination 0.2 lux / F2.0(1/3" )
Color mode (daytime)
Max. Load 500 Kg deformation without crack
Die-Casting Base: Ultra hard aluminium with painting finish
Backlight compensation
Auto electronic shutter control
Auto white balance control

@
@ @ @
@
Features
ITEMS Description
Effective Pixels HxV NTSC: 512(H)*492(V); PAL: 512(H)*582(V)
Chips 1/3 Sony
Lens(mm) 3.6mm
Sensitivity 0.2Lux / F2.0(1/3")
Resolution 420 TV Line
Synchronization Internal
White Balance Auto White Balance
Electronic Shutter Auto, Rang: 1/50(1/60) V 1/100,000 sec
BLC Auto
Gamma 0.45
S/N Ratio More Than 48 dB (AGC Off)
Video Output 1 Vp-p, 75 Ohms
Dimension (Diameter x L) 92 x 69 mm
Power Supply DC 12V (+/- 10%)
AGC Yes
Operating Temperature -10XC - + 50XC
Power Consumption 120mA
Weight 430g
@
@ @ @
@
@Designs and specifications are subject to change without notice.
@
@ @ @
