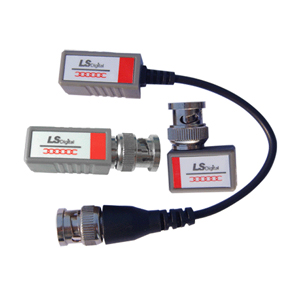

UTP Video Balun for LLT213


1 Channel passive video transceiver
Receiving and transmitting video signals over UTP cable without using the power supply

Tech Information:

Model (LLT-) LLT-202 Series
Specification 1CH passive
Video Frequency Respons: DC-6Mhz conmmon-mode
Differential-Mode Rejection: 15Khz 6Mhz 60dB type
Audio / Data No
Power No
Impedance Coax, Male BNC: 75UTP (screwless)terminal block
UTP RJ45 Data Connector: 100
Wire Type One Unshielded Twisted Pair 24-16AWG (0.5-1.31mm) Per Video Signal: DC loop resistance 52 ohms per 1000 ft (18 ohms per 100m)
Surge Suppression
Control No
UTP Port Terminal block
Dimensions 32 x 21 x 15 (mm)
Weigth 18 (g)
Environment Temperature: -10°C ~ +50°C
Humidity: 0 ~ 95%
