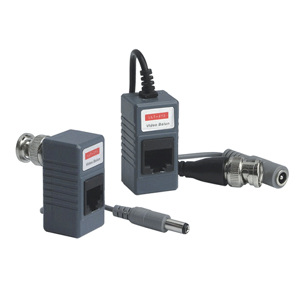

UTP Video Balun for LLT213

Features:

1 Channel passive transceiver
Receiving and transmitting video/audio/power over UTP cable

Tech Information:

Model (LLT-) LLT-213 Series
Specification 1CH passiv power/video/date PVD video transceiver
Video Frequency Respons: DC-6Mhz conmmon-mode
Differential-Mode Rejection: 15Khz 6Mhz 60dB type
Audio / Data Yes
Power No
Impedance Coax, Male BNC: 75UTP (screwless)terminal block
UTP RJ45 Data Connector: 100
Wire Type One Unshielded Twisted Pair 24-16AWG (0.5-1.31mm) Per Video Signal: DC loop resistance 52 ohms per 1000 ft (18 ohms per 100m)
Surge Suppression
Control No
UTP Port RJ45
Dimensions 43 x 20 x 2.1 (mm)
Weigth 35 (g)
Environment Temperature: -10°C ~ +50°C
Humidity: 0 ~ 95%
