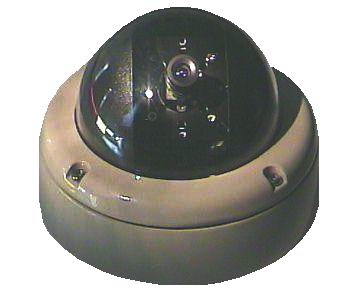

WIT1010s
¡@
¡@ ¡@ ¡@
¡@
Characteristic

High sensitivity, true colour, high resolution
Hi-impact reinforced Polycarbonate Armor Dome withstand a blow 10-pound sledgehammer
Fashionable Design
Reinforced polycarbonate with special coating on surface
Color IR weather-resistant camera 480 TVL 1/3¡¨ SONY SUPER HAD CCD
Illumination 0.1 lux
Color mode (daytime)
Max. Load 500 Kg deformation without crack
Die-Casting Base: Ultra hard aluminium with painting finish
Backlight compensation
Auto electronic shutter control
Auto white balance control

¡@
¡@ ¡@ ¡@
¡@
Features
ITEMS Description
Picture Elements HxV NTSC/EIA: 768*494; PAL/CCIP: 753*582 (High)
H.Sync Frequency NTSC: 15 .734 KHz, PAL: 15.625 KHz
V. Sync Frequency NTSC: 59.94 Hz, PAL: 50 Hz
Chips 1/3¡¨ Sony
Lens(mm) 6mm
Min Illumination 0.1 Lux
Resolution 480 TV Line
Synchronization Internal
White Balance Auto White Balance
Electronic Shutter Auto, Rang: 1/50(1/60) ¡V 1/100,000 sec
Gain control Auto
Gamma 0.45
S/N Ratio More Than 48 dB (AGC Off)
Video Output 1 Vp-p, 75 Ohms
Dimension (Diameter x L) 142 x 84 mm
Power Supply DC 12V (+/- 10%)
Storage temperature -20¢XC - + 70¢XC
Operating Temperature -10¢XC - + 55¢XC
Power Consumption 110mA
Weight 450g
¡@
¡@ ¡@ ¡@
¡@
¡¯¡@Designs and specifications are subject to change without notice.
¡@
¡@ ¡@ ¡@
