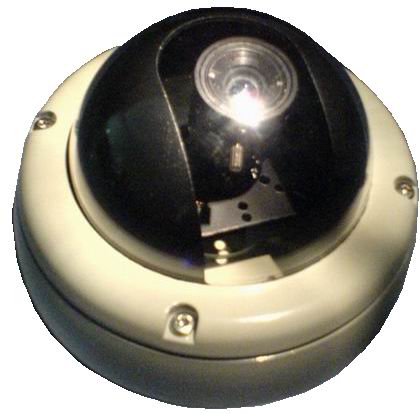

WIT1010SX
@
@ @ @
@
Characteristic

Backlight compensation: Auto
Hi-impact reinforced Polycarbonate Armor Dome withstand a blow 10-pound sledgehammer
Electronic Shutter: Auto
Reinforced polycarbonate with special coating on surface
Beautifully designated configuration 540 TVL 1/3 SONY SUPER HAD CCD
Illumination 0.01 lux
Adopts "special lens" no focus shift, the focal day and night clear
Max. Load 500 Kg deformation without crack
Die-Casting Base: Ultra hard aluminium with painting finish
Patented "Heat-Radiation"

@
@ @ @
@
Features
ITEMS Description
Picture Elements HxV NTSC/EIA: 768*494; PAL/CCIR: 753*582 (High)
Picture Elements HxV NTSC/EIA:510*492;PAL/CCIR:500*582(medium)
Power Supply DC 12V (+/- 10%)
H.Sync Frequency NTSC: 15 .734 KHz, PAL: 15.625 KHz
V. Sync Frequency NTSC: 59.94 Hz, PAL: 50 Hz
Chips 1/3" SONY 11X
Lens(mm) 4~9/ 9~22/ 6/ 16
Min Illumination 0.01 Lux
Resolution 540 TV Line
Electronic Shutter Auto, Rang: 1/50(1/60) V 1/100,000 sec
S/N Ratio More Than 48 dB (AGC Off)
Video Output 1 Vp-p, 75 Ohms
@
@ @ @
@
@Designs and specifications are subject to change without notice.
@
@ @ @
