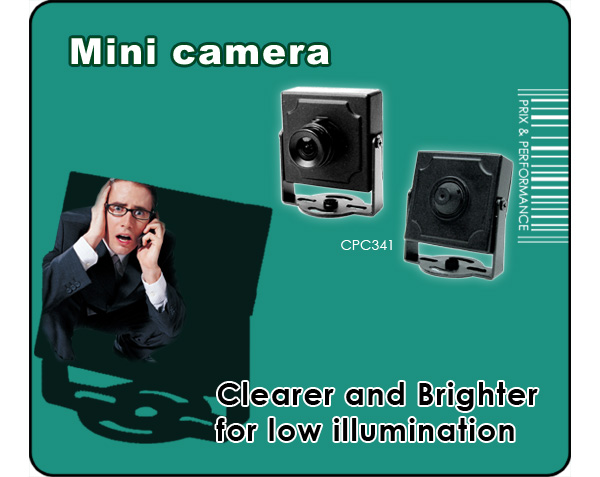

Mini Camera
This compact and tiny mini camera employs a 1/3” Sony color CCD image sensor and can be easily hidden and disguised for total surveillance. Two kinds of lens are selectable as “board lens” and “pinhole lens”. |
| Features |
| |
CPC341 |
| 1/3" SONY Color Super HAD CCD sensor |
 |
| Min.Illumination: 0.5Lux / F2.0 |
|
| S/N ratio more than 48dB |
|
|
| |
|
Specifications |
| |
CPC341 |
| Pick-up Element |
1/3" SONY Color Super HAD CCD sensor |
| Resolution |
Standard |
| Min. Illumination |
0.5Lux / F2.0 |
| Number of Pixel |
510(H) x 492(V) <NTSC> / 500(H) x 582(V) <PAL> |
| S/N Ratio |
More than 48dB (AGC off) |
| Microphone |
Yes |
| Electronic Shutter |
1/60 (1/50) to 1/100,000 sec |
| White Balance |
ATW |
| Lens |
Board Lens: f3.6mm / F2.0; Pinhole Lens: f3.7mm / F2.0 |
| Lens Angle |
92.6°/ 90° |
| Video Output |
1.0Vp-p composite, 75Ω |
| Power Source( ± 10%) |
DC12V |
| Current Consumption |
90mA |
| Operating Temperature |
0℃ ~40℃(32℉ ~104℉) |
| Dimension(mm) |
Board Lens: 36(W) x 36(H) x 29(L);
Pinhole Lens: 36(W) x 36(H) x 18(L) |
| Net Weight(g) |
N / A |
| Gross Weight(g) |
135 |
|
|
| * Designs and specifications are subject to change without notice. |
|
 |
