Characteristics |

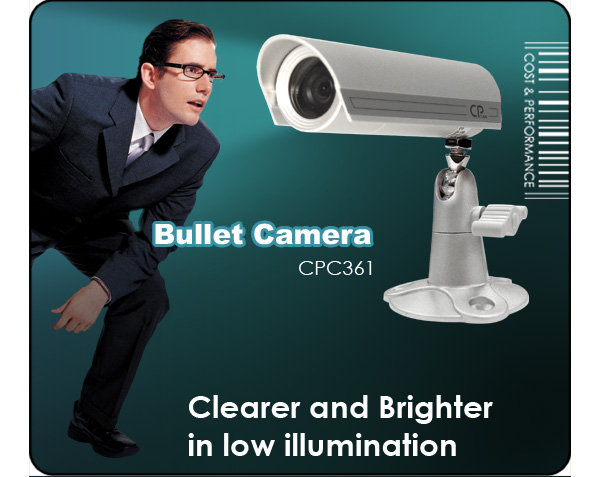

Bullet Camera
This color bullet camera employs a 1/3" Sony Color Super HAD CCD which provides the great picture quality and viewing angle. Its small and compact size is suitable for any environment where concealed surveillance is desired. |
| Features |
| |
CPC361 |
| 1/3" SONY Color Super HAD CCD sensor |
 |
| Min.Illumination: 0.5Lux / F2.0 |
|
| S/N ratio more than 48dB |
|
|
| |
|
Specifications |
| |
CPC361 |
| Pick-up Element |
1/3" SONY Color Super HAD CCD sensor |
| Resolution |
Standard |
| Min. Illumination |
0.5Lux / F2.0 |
| Number of Pixel |
510(H) x 492(V) <NTSC> / 500(H) x 582(V) <PAL> |
| S/N Ratio |
More than 48dB (AGC off) |
| Microphone |
N/A |
| Electronic Shutter |
1/60 (1/50) to 1/100,000 sec |
| White Balance |
ATW |
| Lens |
f3.6mm / F2.0 |
| Lens Angle |
92° |
| Video Output |
1.0Vp-p composite, 75Ω |
| Power Source( ± 10%) |
DC12V |
| Current Consumption |
80mA |
| PIR Detection Range |
- |
| Lamp Control Loading |
- |
| PIR Alarm Output |
- |
| Operating Temperature |
0℃ ~40℃(32℉ ~104℉) |
| Dimension(mm) |
29.5(W) x 27(H) x 100(L) |
| Gross Weight(g) |
342 |
|
|
| * Designs and specifications are subject to change without notice. |
|
 |
