Characteristic

IP 68. water-resistant (allow immersed into 2 meter water)
Weather-proof Housing for Outdoor Use
Fashionable Design
A patented heat-radiation body

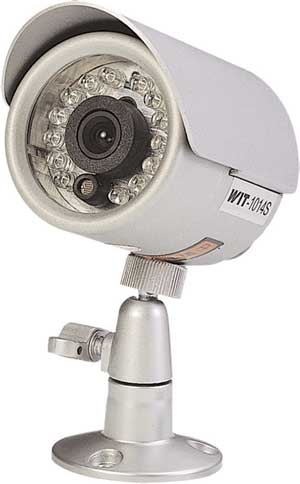

Color IR weather-resistant camera 480 TVL 1/3¡¨ SONY SUPER HAD CCD
Illumination 0.1 lux/without IR & 0 lux/with IR
Color mode (daytime),B/W mode (night-time)
14 IR LEDS, available distance is 15 meters
Backlight compensation
Auto electronic shutter control
Auto white balance control
Pass 100,000V electronic shock testing

¡@
¡@ ¡@ ¡@
¡@
Features
ITEMS Description
Description: 1/3 inch color IR camera
Pick-up element: SONY Super-HAD CCD image sensor
Number of pixels: PAL (H*V):752*582
Auto electronics shutter: On (Rang. 1/50(1/60) ¡V 1/100,000 sec.)
Backlight compensation: On
Sync. mode: Internal sync
Scanning system: 2:1 interlace
Resolution: 480TV lines
S/R ratio: More than 48dB
Gamma characteristic: 0.45
Gain Control: Auto
White Balance: Auto White Balance
Minimum illumination: 0 lux with IR
Infrared LED: Quantity: 14
Beam spread: 45degrees(f=3.6mm),35degrees(f=6mm),25degree(f=8mm)
Radiant distance: 15m
Horizontal sync. frequency: PAL:15.625khz
Vertical sync. frequency: 60Hz(50Hz)
Video output: 1.0Vp-p ,75ohms
Power source: DC 12V
Power consumption: 60mA (led Off) / 190mA (led On)
Operating temperature: -10to+60 degrees Celsius
Lens amount: f3.6, 6mm(OPTION)
Shutter control: Pal:1/50 to 1/100000 second
Dimensions (diameter*H): 57 * 94 mm
Net weight: 300 g
¡@
¡@ ¡@ ¡@
¡@
¡¯¡@Designs and specifications are subject to change without notice.
 ¡@
¡@ ¡@ ¡@
